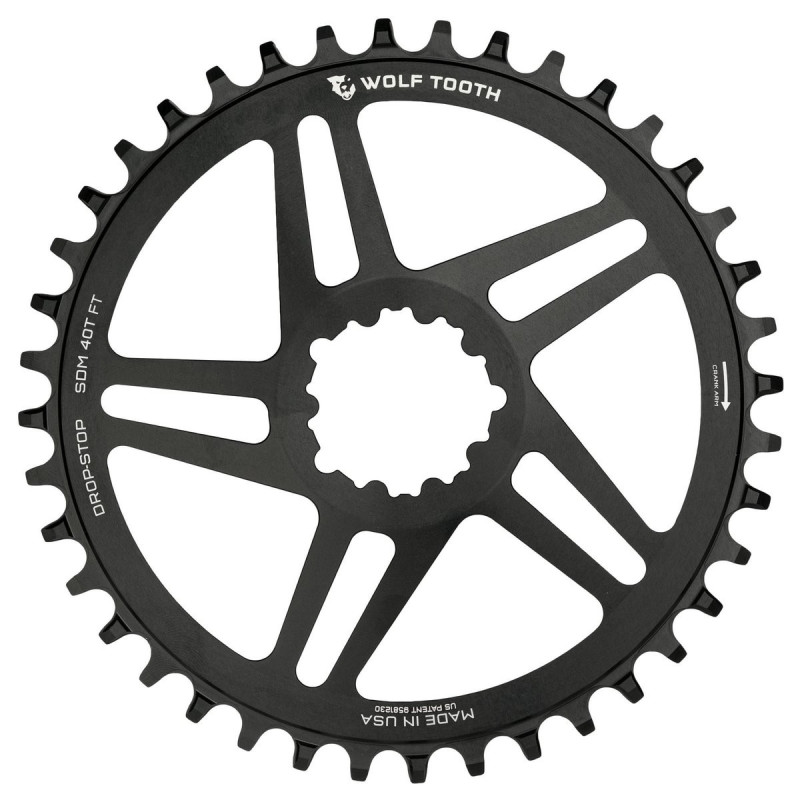

Item : Ref W_SDM40-FT Wolf Tooth Direct Mount Chainring for SRAM for SRAM Flattop chain
EAN : 810006801156
Chainrings : 40
98.33 € TTC
Available : 2 items remaining
Item : Ref W_SDM38-FT Wolf Tooth Direct Mount Chainring for SRAM for SRAM Flattop chain
EAN : 810006801149
Chainrings : 38
98.33 € TTC
Restocking in progress
Item : Ref W_SDM42-FT Wolf Tooth Direct Mount Chainring for SRAM for SRAM Flattop chain
EAN : 810006801163
Chainrings : 42
98.33 € TTC
Available : 3 items remaining
Description
Direct mount chainrings for SRAM cranksets replace your existing spider and chainring with a single machined, lightweight and rigid billet piece. They are available in 3 different offsets: 6 mm standard offset, 3 mm Boost offset and 0 mm BB30 short spindle offset.
Compatibility
- These direct mount chainrings will replace your existing chainring and spider or replace the direct mount ring on SRAM cranksets, including DUB cranks. The ring is attached via 3 bolts at the back of the spider near the spindle. Note that SRAM 12spd Red and Force AXS use a different 8-bolt mounting interface which is not compatible with these chainrings.
- Wolf Tooth's patented Drop-Stop® wide/narrow tooth profile for ultimate chain retention and mud-shedding capability
- There are 3 offsets: Standard Road/CX/Gravel: 6 mm offset for cyclocross and road crank applications with 47 mm chainline
- Standard MTB: 6 mm offset for non-Boost MTB, GXP and BB30 long spindle cranks for 49 mm chainline
- Boost: 3 mm offset for 52 mm chainline
- BB30: 0 mm offset for BB30 short spindle cranks for 49 mm chainline
- Fat bikes: if your fat bike has 170/177 rear hub spacing, use the standard 6 mm offset
- Praxis Works Road/CX cranks use the 6 mm offset. Praxis Works mountain cranks use the 3 mm offset for their DM-A and the 0 mm offset for their DM-B chainrings.
Technical specifications
Weight: 26t • 52g | 28t • 59g | 30t • 65g | 32t • 70g | 34t • 75g | 36t • 81g | 38t • 90g | 40t • 106g | 42t • 111g
Material: 7075-T6 aluminium
Made in the USA
