Description
| PRODUCT | M30 T47-ASYM. | For use with T47 asymmetric threaded frame See photos above! |
| BUY IT IF: | You are installing a Praxis M30 alloy crank in a T47 Asym threaded frame. |
| MEASUREMENT | 76.75mm - Threaded ROAD/GRAVEL frame shell width 81.25mm - MTN threaded frame shell width Useful frame shell guide here |
| TOOL | Use only one M30 Socket Tool or M30 Socket Wrench |
| BEARINGS | Steel or Ceramic Cartridge 30mm DRIVE / 28mm Non-DRIVE |
| MFG | Forged and machined alloy cups, heat treated. |
| AVERAGE WEIGHT | 100g |
| NOTE | Praxis M30 bottom brackets have a 30mm drive bearing and a 28mm non-drive bearing. They are specially designed for use with our Praxis M30 axles. A wave washer on the drive side is used for bearing preload. We also offer a M30 bearing rebuild kit here if or when you wish to refresh the bearings. |
P_47-5081
850054960900
Features
- Bottom Bracket
- 30mm
P_47-5081
850033390490

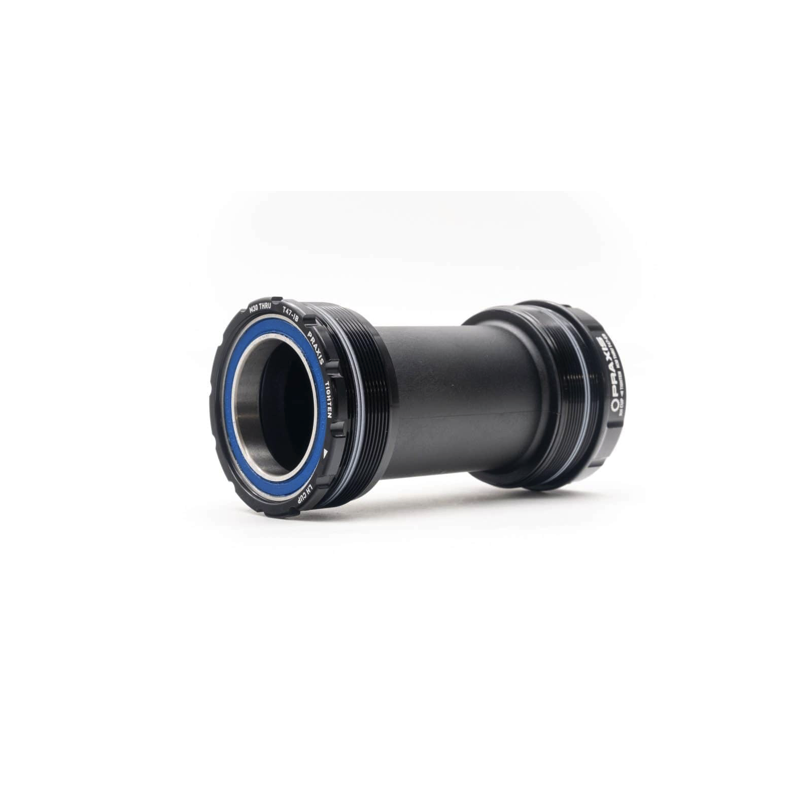

Praxis M30 THRU T47 ASYM
